NAF splice cabinets

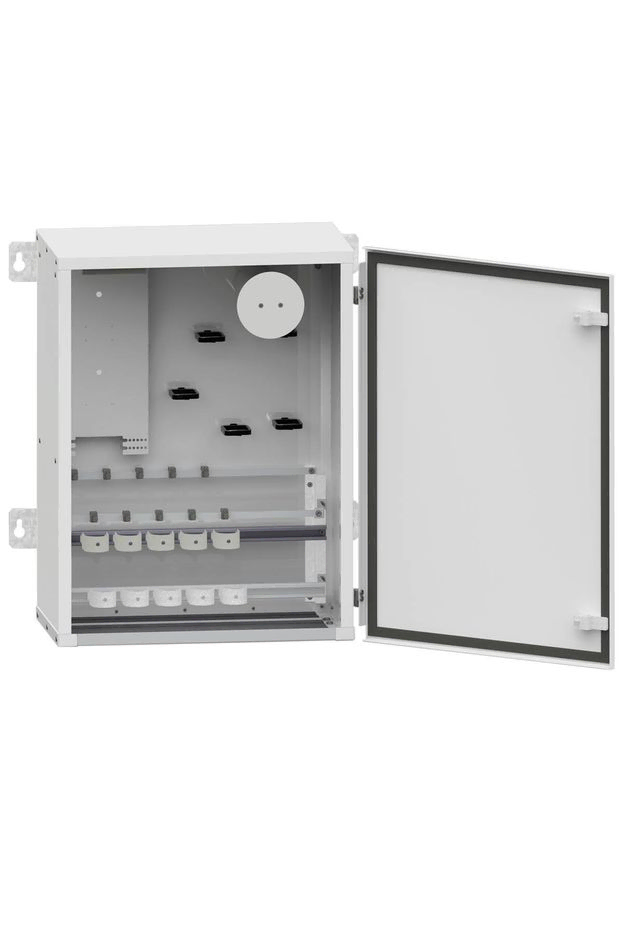

Splice cabinet NAF 864

• Product code: 7269297
• To be placed inside K0 or K1 distribution cabinet
• Supplied either separately or pre-installed into K0- or K1- cable distribution cabinet
• Can also be mounted directly on the wall
• Includes slots for 13 48-fiber splice trays or for nine 96-fiber splice trays
• Suitable for various direct buried cables and duct cables as well as microduct cables
• Can be used for mid span access
• Dimensions 600 x 450 x 250 mm (HxWxD), weight 19,5 kg
• Material: hot-dip galvanized steel sheet
• Dustproof construction
• The door can be removed during installation
• Splice cabinet NAF 864 installed inside K0/1200 distribution cabinet with stand: 7269326

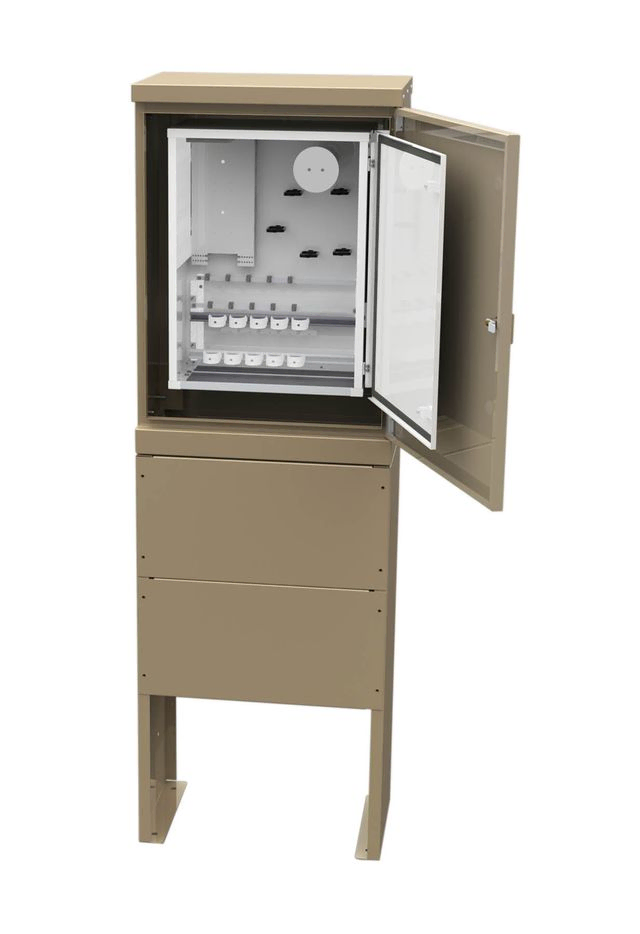

• Splice cabinet NAF 864 installed inside K0/850 distribution cabinet with stand: 7263442
• Splice cabinet NAF 864 installed inside K0/850 distribution cabinet with stand: 7263520

NAF multi-cabinet

• Product code 7268711
• To be placed inside K0 or K1 distribution cabinet
• NAF multi-cabinet and K0/850 distribution cabinet with stand 7269473
• NAF multi-cabinet and K0/850 distribution cabinet with stand 7263510
• Suitable for various direct buried cables and duct cables as well as microduct cables
• Microducts can be brought directly inside the splice cabinet
• Includes slots for 48-fiber splice trays and for 96-fiber splice trays
• The door can be removed during installation
• Dimensions 600 x 450 x 250 mm (HxWxD), weight 19,5 kg
• Material: hot-dip galvanized steel sheet
• Capacity:
  • 17 pcs 48-fiber splice trays
  • 12 pcs 96-fiber splice trays
  • 98 pcs 7/3,5 mm microducts
  • 16 pcs 14/10 mm microducts
• Beside splice trays, Mini panels and splitter cases with hook brackets can be placed into the cabinet.

Mini panels with hook brackets for splice cabinets

• Terminal or splitter module which is installed to a splice tray stand using hook brackets.
• Mini panel 7269407
• Mini panel LCA/- HBBX 12SML 5m, 7269408
• Mini panel LCA/- HBBX 24SML 5m, 7269329
• Mini panel 1:8 LCA splitter module,, 7269336
• Mini panel 2x 1:8 LCA splitter module,, 7269337
• Mini panel 1:16 LCA splitter module,, 7269338
• Mini panel LCA/- 12SMT 3,5m, 7269465
• Mini panel LCA/- 24SMT 3,5m, 7269488
• Mini panel LCA/- 48SMT 3,5m, 7269489
• Mini panel 4SM+1:16 LCA, 7263455
• Mini panel package, 7269396
  • The package includes::
    Mini panel LCA/- HBBX 24SML 5m, 7269329
    Mini panel 1:16 LCA splitter module, 7269338
    Splice tray 48, 2 pcs, 7264145

Splitter cases with hook brackets

• Product code 7269316
  • A PLC splitter, with a split ratio of 1:16, is installed in a splitter case. The fibers are in protective tubes. Com in its own tube and other fibers 8 pcs/tube. In the case, there are hook fasteners suitable for the splice tray holders. The length of the fibers is 3 m.
• Product code 7269317
  • A PLC splitter, with a split ratio of 1:32, is installed in a splitter case. The fibers are in protective tubes. Com in its own tube and other fibers 8 pcs/tube. In the case, there are hook fasteners suitable for the splice tray holders. The length of the fibers is 3 m.

Splitter cases with hook brackets and with connectors

• Splitter case that can be attached to the splice tray holder with hook backets. A PLC splitter is installed inside the case. The connectors are LC/APC connectors.

• • 7263500, Jaotinkotelo 1:4 LCA
  • 7263501, Jaotinkotelo 1:8 LCA
  • 7263502, Jaotinkotelo 1:16 LCA
• Splitter case that can be attached to the splice tray holder with hook backets. 12 LC/APC connectors are installed inside the case, with a 12-fiber MPO connector at the other end.
  • 7263503, Jaotinkotelo 12LCA/MPO

NAF SLIM splice cabinet

• NAF SLIM splice cabinet 7268710
• A narrow outdoor cabinet with places for splice trays inside.
• The cabinet has side supports for splice trays.
• Suitable for various direct buried cables and duct cables as well as microducts.
• Suitable for splice trays with hook brackets (both 48-fiber and 96-fiber)
• Measures 1700x403x215 mm
• Weight 40,8 kg
• Colour options: RAL7008, RAL7024, RAL7035 and unpainted hot-dip galvanized
• Capacity:
  • 9 pcs 48-fiber splice trays
  • 6 pcs 96-fiber splice trays
• Can be delivered equipped with a yellow/black marker pole.

Splice cabinet NAF Compact

• NAF Compact 7263464
• NAF Compact is suitable for different direct buried cables, duct cables, microduct cables and microducts.
• NAF Compact is suitable for extending and branching different optical cables even in small outdoor cabinets.
• Is placed inside an outdoor cabinet.
• Includes slots for 10 48-fiber splice trays or for six 96-fiber splice trays.
• Cable glands with bristle are at the bottom of the cabinet.
• The door can be removed during installation
• External dimensions 500 x 250 x 170 mm (HxWxD)
• Material galvanized steel sheet
• Dustproof construction

Splice cabinet NAF 528

• Product code: 7269307
• Splice cabinet NAF 528 is suitable for various direct buried cables, duct cables and microducts
• For indoor purposes or inside distribution cabinets
• Wall mounted
• There is room for 11 48-fiber splice trays or for 7 96-fiber splice trays.
• Cable glands with bristle can be changed between the upper and lower part of the cabinet as needed.
• The door can be removed during installation
• Dimensions 500 x 450 x 173 mm
• Material: powder coated sheet steel
• Dustproof construction

Indoor splice cabinet NAF 1584

• Product code: 7269306
• NAF 1584 is suitable for jointing different cables and branching them inside IT area from outdoor cables to cables suitable for indoor installations.
• For indoor purposes
• Suitable for various direct buried cables and duct cables
• The dismantlable cable glands are at the top and bottom
• Dimensions 600 x 600 x 300 mm
• There is room for 33 48-fiber splice trays
• Behind the splice tray holder, there is a large space for fiber tubes. For both incoming and outgoing cables.
• Dustproof construction
• The door is removable for installation
